42H48MBG-Externally tpye | Linear Stepper |

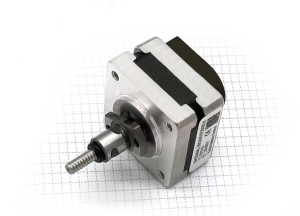

The 42H48MBG is an externally driven linear linear actuator with large torque output. 42H48MBG integrates 42H48 stepper motor and ball screw. Integrated structure, directly connected inside. Save equipment installation space. Various screw specifications are available. Built-in encoder versions (42H48MBGE) are also available.

Features

  • Nema17 step servo motor
  • Longer life and higher accuracy
  • Different lengths available
  • Miniature ball screw
  • Microstep driver available
  • Closed-loop and open-loop versions are available

规格参数

推力(N):0-400 N
速度(mm/s):0-50 mm/s
法兰尺寸(mm):42 mm
机身长度(mm):48 mm
输出类型:外部驱动式
内置编码器:
可选:编码器
定制化:L1 Different lengths available
可选驱动器 / 控制器:

Motor Controllers / Drives available

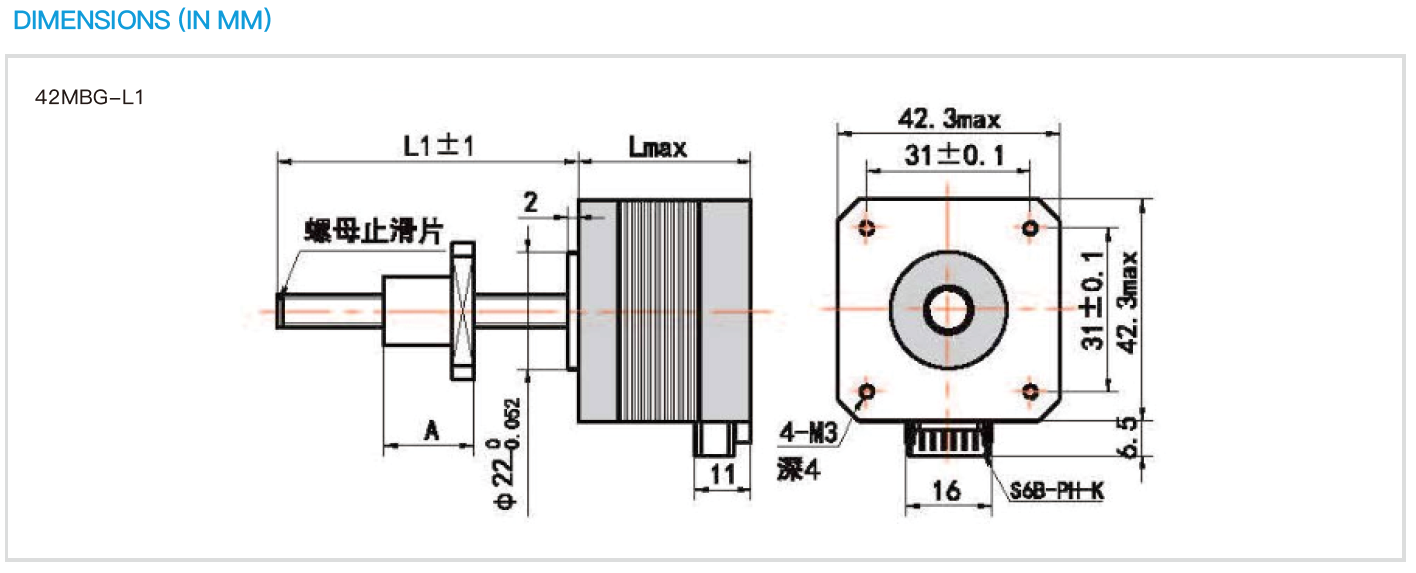

DIMENSIONS (MM)-42H34MBG

Nut-G0802(Left)  G0805(Right)

Force-Velocity Curve-42H48MBG

 *Measured in the laboratory, safety margin must be greater than the above value 30% to 50%
