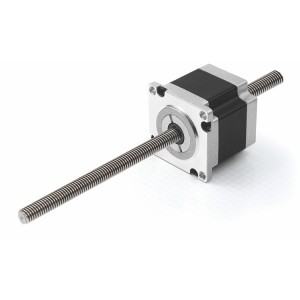

L5918S2008-T10X2

Linear actuator in size NEMA 23 (56 mm) with high thrust and tensile force. Low-friction PEEK bushing, long service life and nut in the front bearing flange for greater compensation of the axial play. Micro-stepping drives of the SMCI series offer resolutions of up to 0.005 mm/step. Also available with mounted encoder for position feedback. Ideally suited for precision linear axes.

Please note:

  • The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values.
  • Moving against fixed limit stops should be avoided.
  • Matching lead screws can be found in the accessories list of the selected product.

规格参数

推力(N):800 N
速度(mm/s):70 mm/s
法兰尺寸(mm):57 mm
机身长度(mm):51 mm
输出类型:贯通轴式
内置编码器:
可选:编码器
可选驱动器 / 控制器:

CL3-E - Motor controller for CANopen, Modbus RTU or USB







Technical Data

Dimensions

Torque  Curves

文档下载

文件 类型 大小 最后更新 链接
L59 Product_Overview pdf 274.501KB 3月 / 17 / 2020   Download
L5918S2008-T10x2 Data Sheet pdf 247.436KB 3月 / 16 / 2020   Download
Linear Motor Catalog pdf 117.093KB 3月 / 16 / 2020   Download
