LSA201S06-A-UECB-102

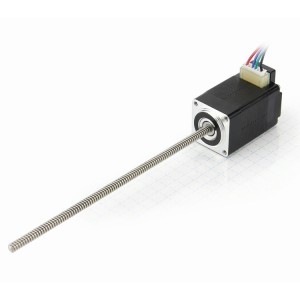

Compact external linear actuator in size NEMA 8 (20 mm). Ideal for the installation of compact linear axes, since it does not require a coupling, a bearing base or any installation effort. No linear guide necessary for small loads and low load ratings. Comes with trapezoidal or ACME thread. Available in several lengths and with different windings. The electrical connection is made using an integrated connector.

Please note:

  • The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values.
  • Moving against fixed limit stops should be avoided.
  • Matching nuts can be found in the accessories list of the selected product.

规格参数

推力(N):33.7 N
速度(mm/s):60 mm/s
法兰尺寸(mm):20 mm
机身长度(mm):33 mm
输出类型:外部驱动式
内置编码器:
可选:编码器
可选驱动器 / 控制器:

CL3-E - Motor controller for CANopen, Modbus RTU or USB







Technical Data

Dimensions

Torque  Curves

文档下载

文件 类型 大小 最后更新 链接
Linear Motor Catalog pdf 117.093KB 3月 / 16 / 2020   Download
LSA20 Product_Overview pdf 259.842KB 3月 / 17 / 2020   Download
LSA201S06-A-UECB-102 3D Model stp 481.434KB 3月 / 16 / 2020   Download
LSA201S06-A-UECB-102 Data Sheet pdf 101.198KB 3月 / 16 / 2020   Download
