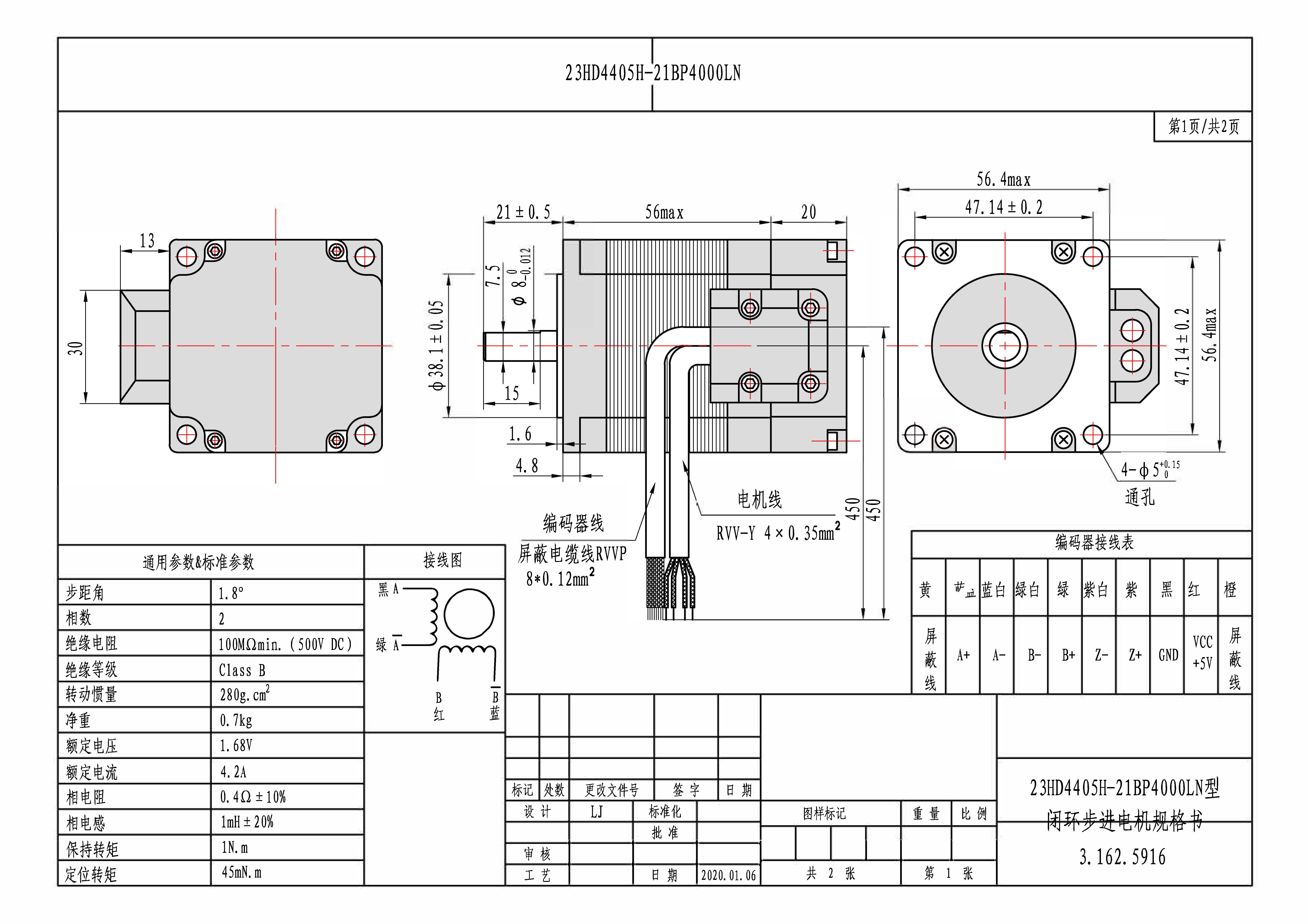

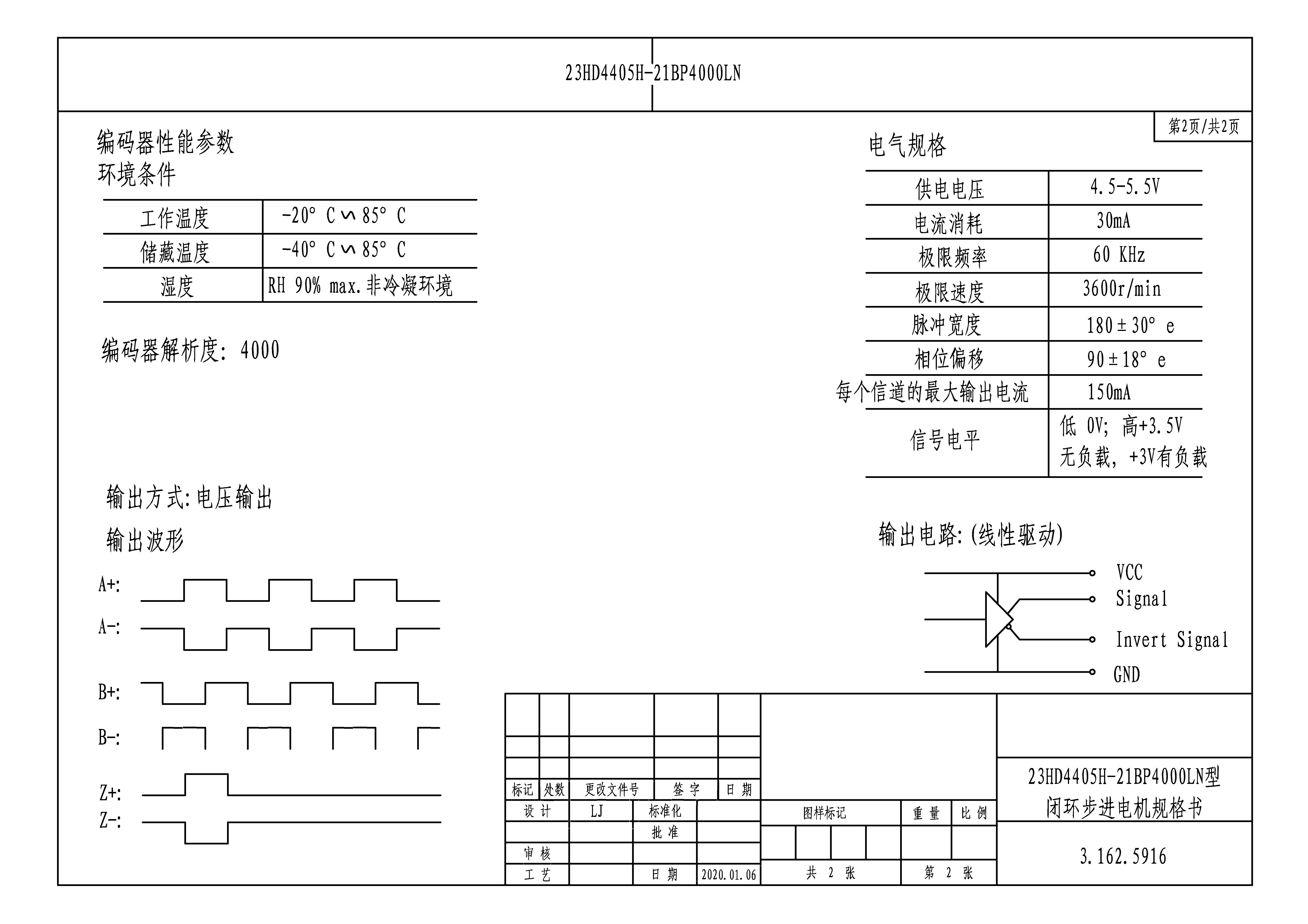

23HD4405H-21BP4000LN Specification A

Nema23 closed loop stepper motor, 16000 pulses per revolution high precision ABZ three-channel encoder Basic motor body height 56. Holding torque 1Nm.

Features

  • Closed-loop Servo Hybrid Stepping Motor
  • NEMA23 stepper motor
  • ABZ three-channel encoder
  • 16000 pulses per revolution
  • Shaft end supports customization

规格参数

额定转速(rpm):500 rpm
法兰尺寸(mm):57 mm
力矩(Nm):1 Nm
步距角(°):1.8
选装变速箱:
可选:编码器
定制化:Shaft & Encoder Resolution
可选驱动器/控制器:

Controllers / Drives Optional

文档下载

文件 类型 大小 最后更新 链接
23HD4405H-21BP4000LN Specification A pdf 519.518KB 2月 / 06 / 2020   Download
